PIPE FITTINGS

Higron presents a versatile selection of pipe fittings, including branch fittings, compression fittings, flanges, and buttweld fittings. Each meticulously engineered component is crafted to exacting standards, ensuring seamless compatibility and optimal performance within piping networks. Whether it’s diverting flow with precision branch fittings, facilitating secure connections with compression fittings, providing structural support with buttweld fittings, or enabling easy assembly with flanges, Higron’s comprehensive lineup caters to diverse industrial requirements with reliability and efficiency at its core.

Flanges Buttweld Pipe Fittings High-Pressure Forge Fittings Branch Fittings Compression Tube Fittings

FLANGES

PRODUCT RANGE

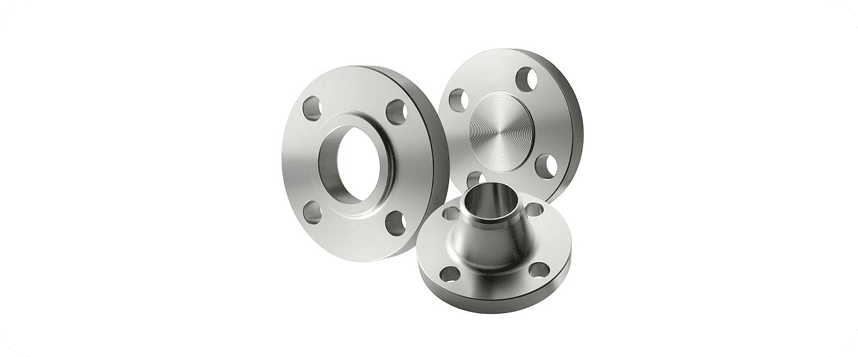

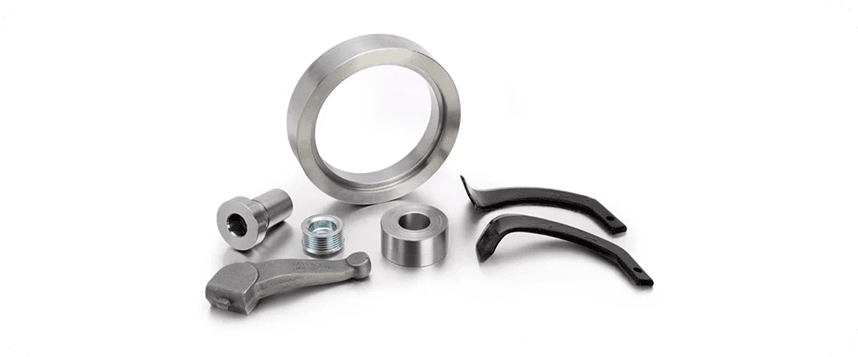

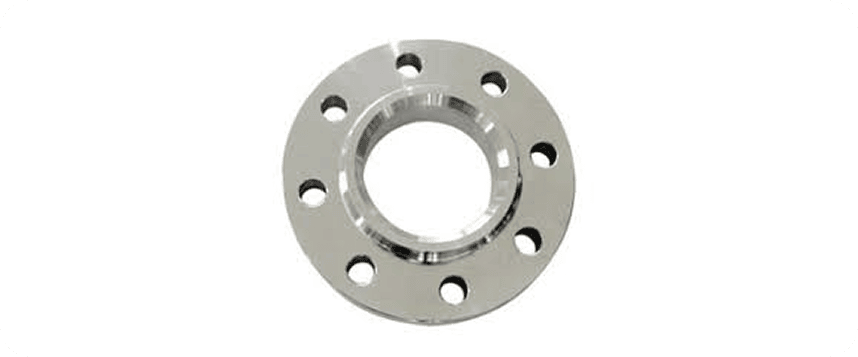

ANSI – ASME Flanges	DIN Flanges	EN Flanges	Other Forgings

MANUFACTURING RANGE

Higron manufactures and supplies flanges and pipe fittings meeting international standards for sectors like petrochemicals, pharmaceuticals, refineries, and more. Our advanced design center utilizes cutting-edge 3D software and skilled technicians. We also operate state-of-the-art CNC and VMC machinery for consistent large-scale production. Flanges are produced according to ASME, ANSI, DIN, and EN standards. For specific details on each type, please contact us.

1. Material test certificate as per EN 10204 3.1 OR EN 10204 3.2

2. Back up documents :

- Raw Material Test Certificate
- Lab Test Reports (Chemical, Mechanical, Hardness, IGC, etc.)
- Dimensional Reports
- Heat Treatment Charts

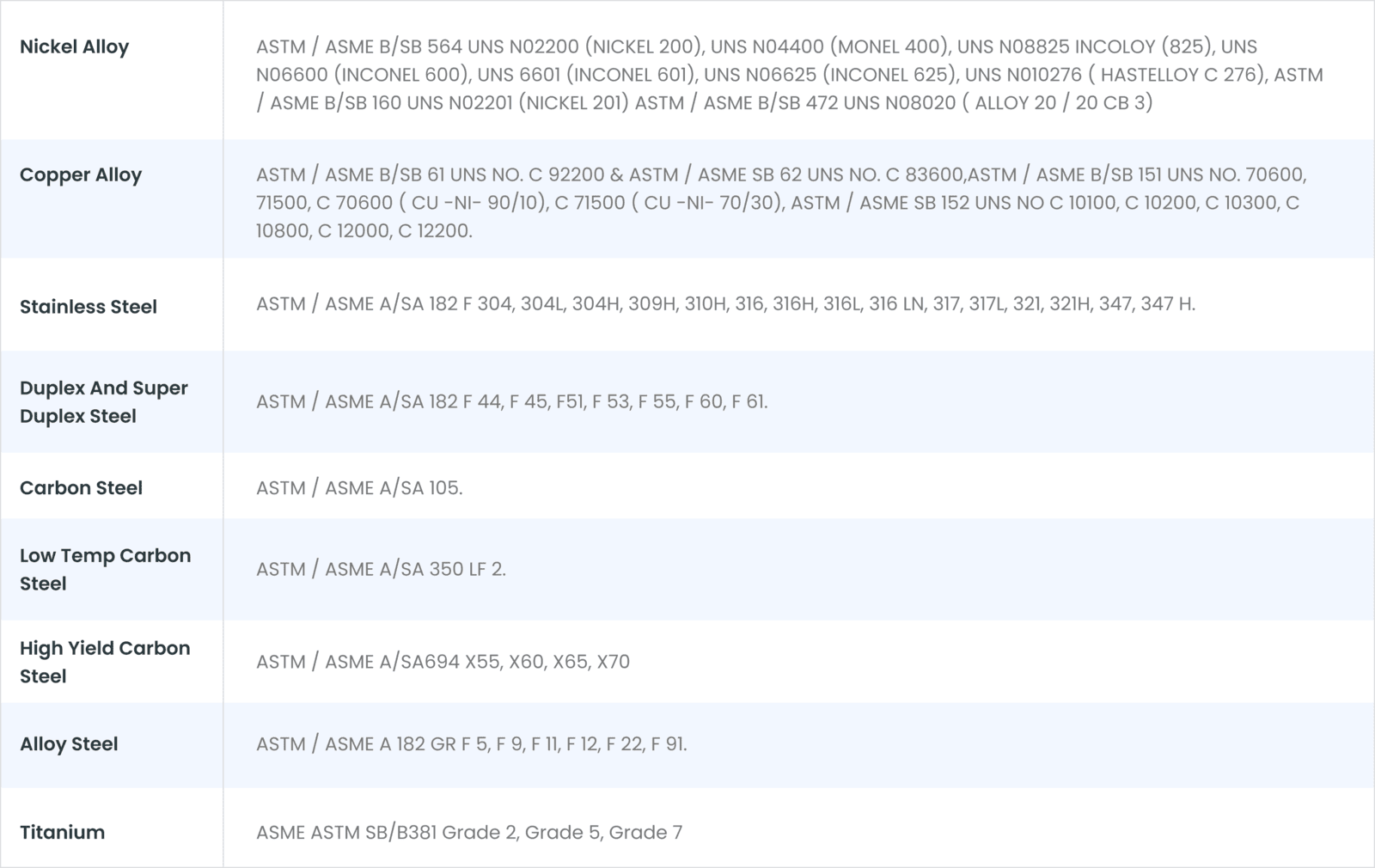

GRADES & SPECIFICATIONS

Nickel Alloy	ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY 20 / 20 CB 3)
Copper Alloy	ASTM / ASME B/SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600,ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.
Stainless Steel	ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex Steel	ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel	ASTM / ASME A/SA 105.
Low Temp Carbon Steel	ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel	ASTM / ASME A/SA694 X55, X60, X65, X70
Alloy Steel	ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Titanium	ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7

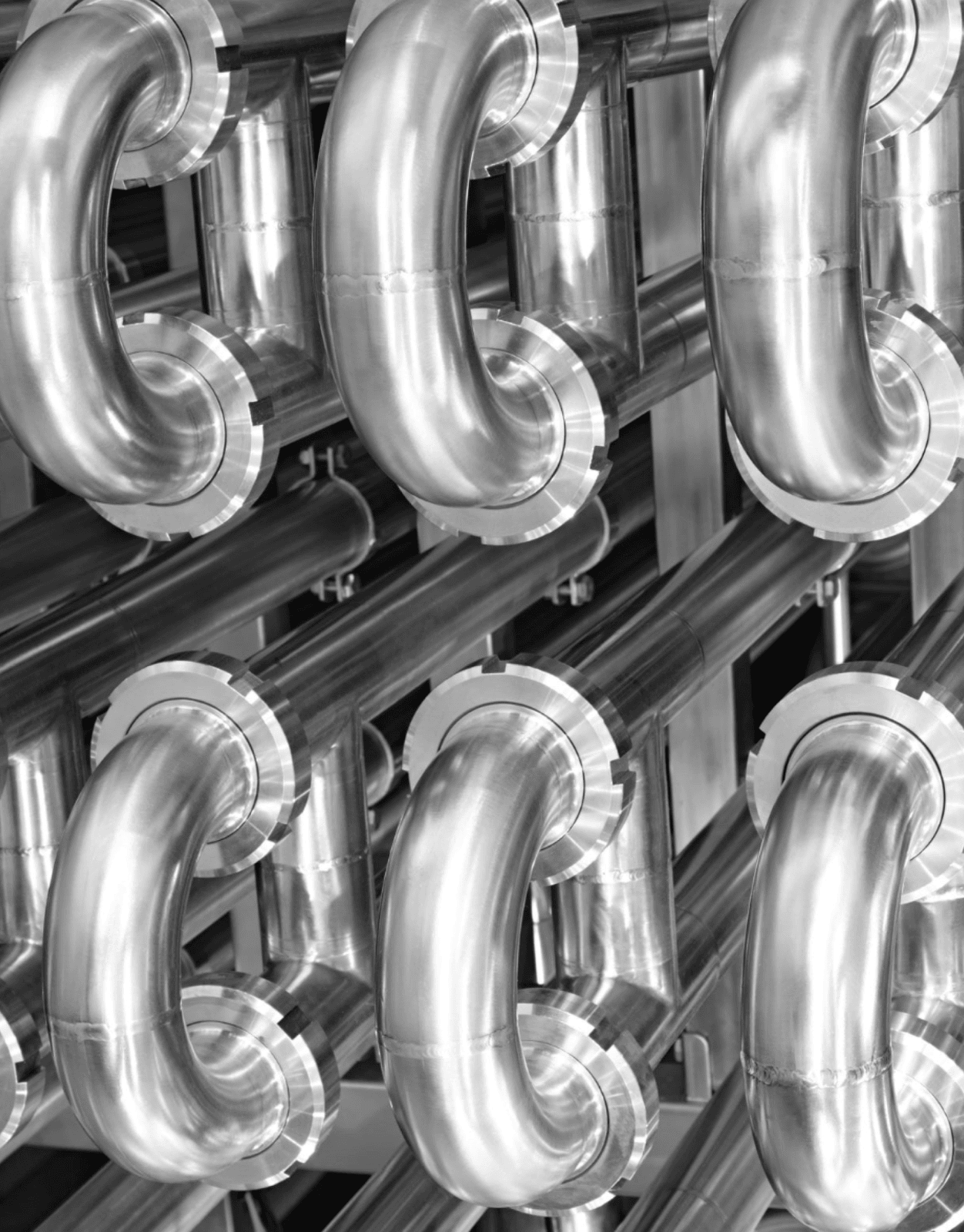

BUTTWELD PIPE FITTINGS

PRODUCT RANGE

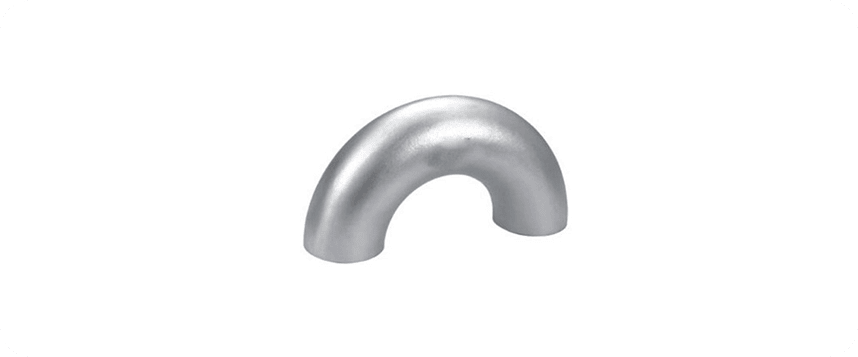

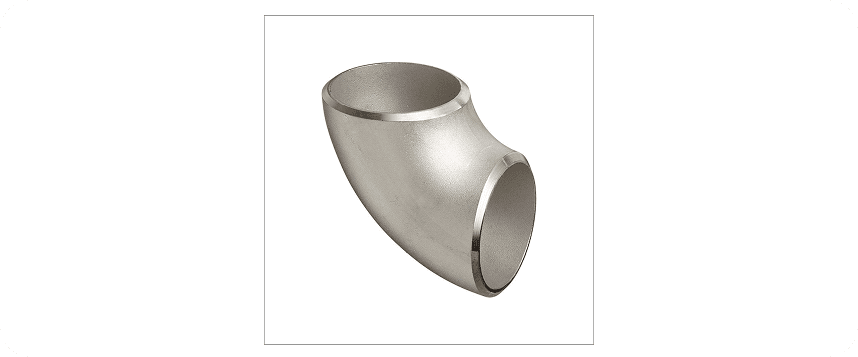

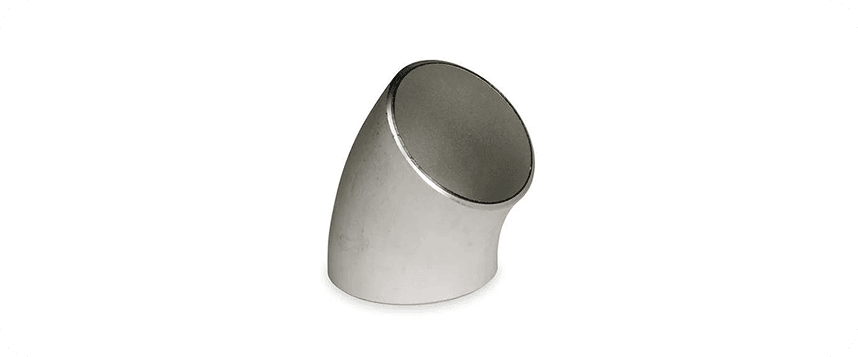

90 Degree Elbows	45 Degree Elbows	180 Degree Elbows

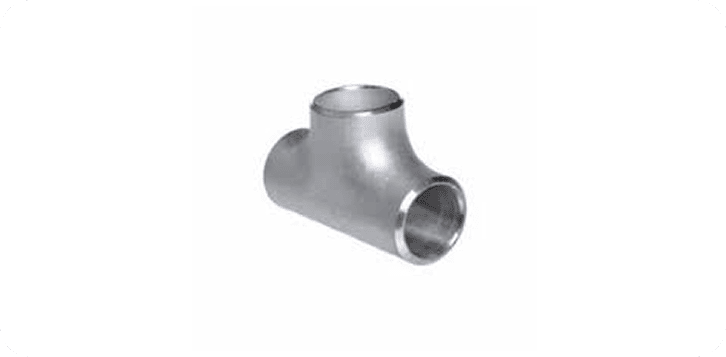

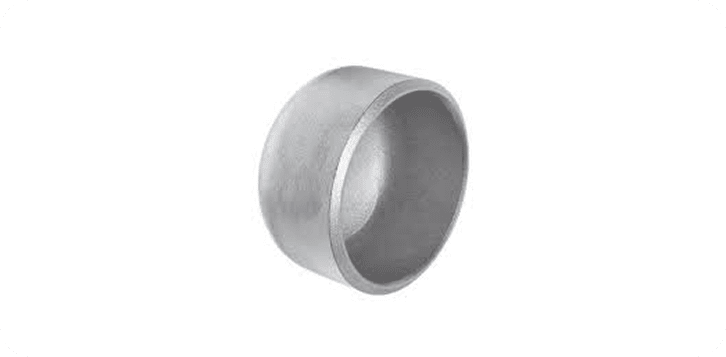

Equal Tees & Crosses	Unequal Tees & Crosses	Buttweld Caps

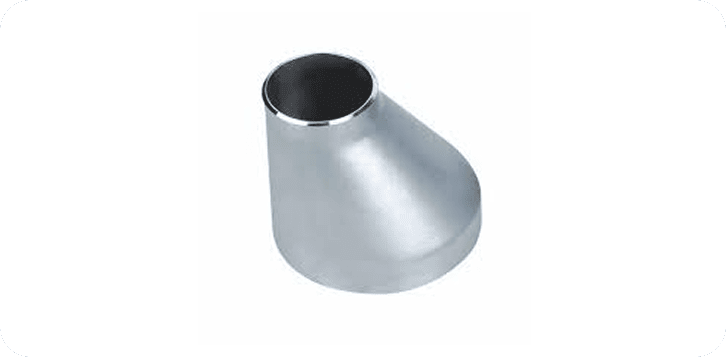

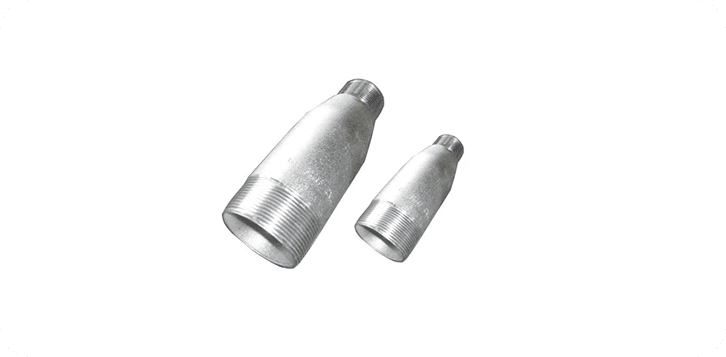

Concentric & Eccentric Reduers	Swage Nipples	Stub Ends

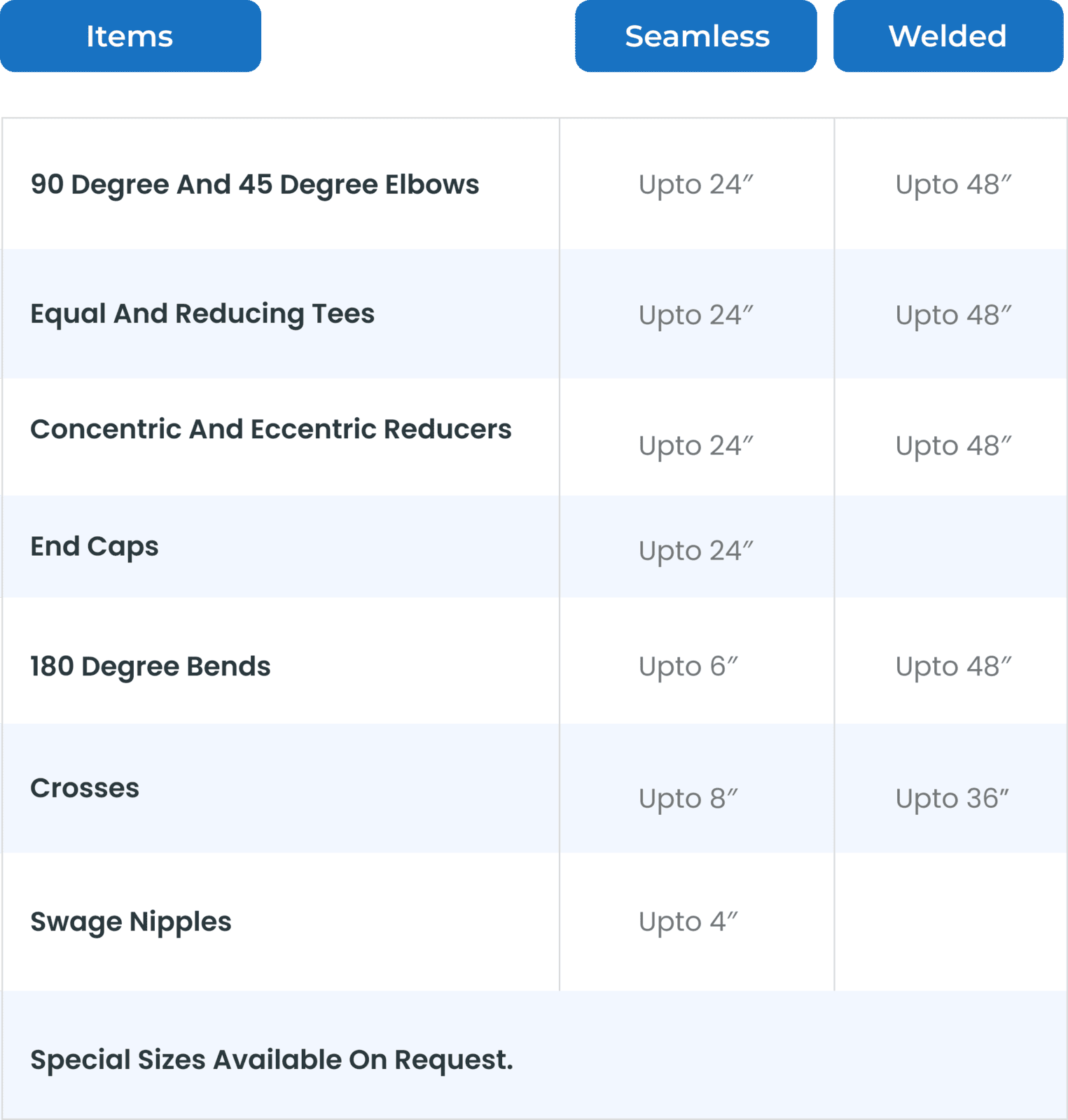

MANUFACTURING RANGE

Items	Seamless	Welded
90 Degree and 45 Degree Elbows	Upto 24″	Upto 48″
Equal and Reducing Tees	Upto 24″	Upto 48″
Concentric and Eccentric Reducers	Upto 24″	Upto 48″
End Caps	Upto 24″
180 Degree Bends	Upto 6″	Upto 48″
Crosses	Upto 8″	Upto 36″
Swage Nipples	Upto 4″
Special sizes available on request.

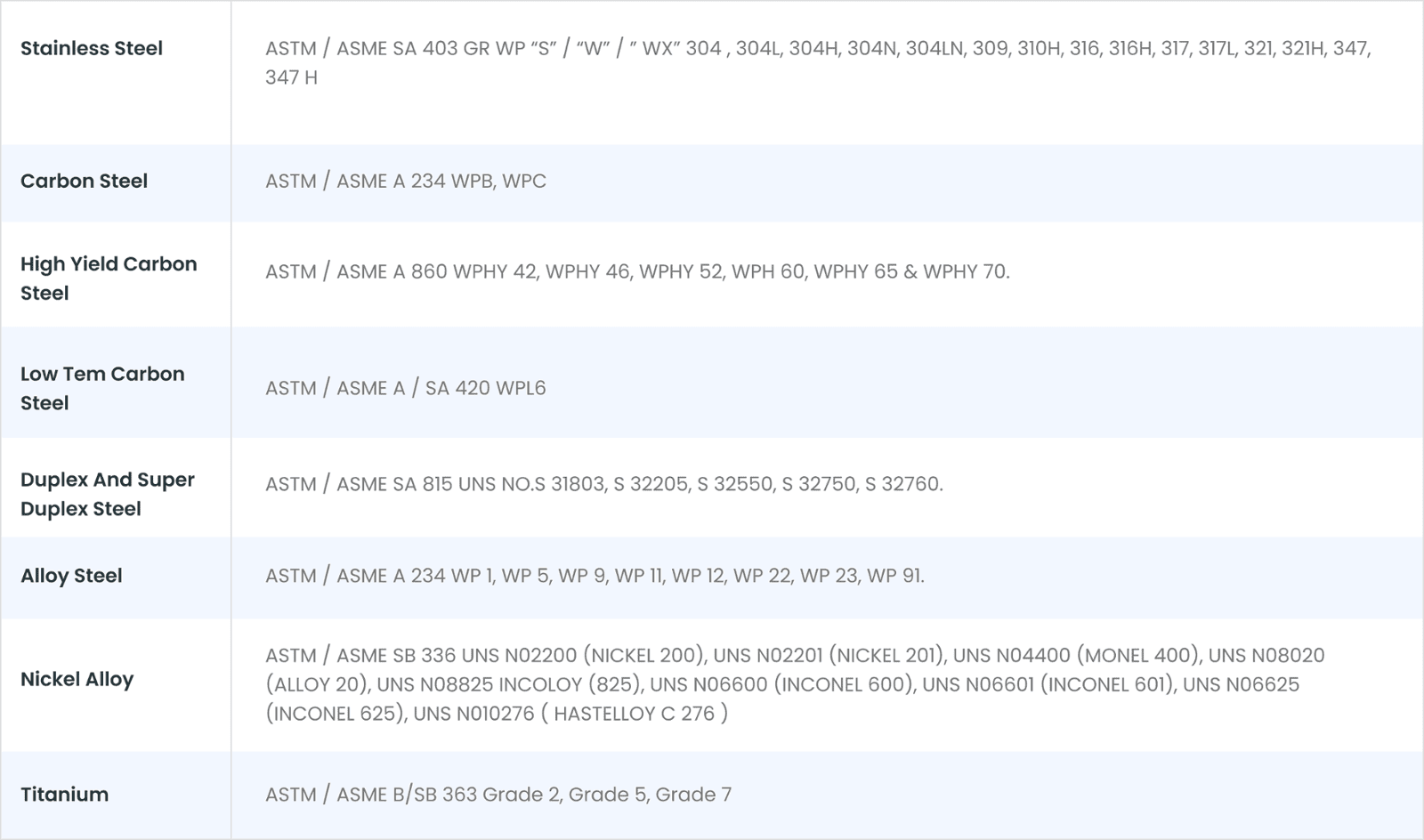

GRADES & SPECIFICATIONS

Stainless Steel	ASTM / ASME SA 403 GR WP “S” / “W” / ” WX” 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H
Carbon Steel	ASTM / ASME A 234 WPB, WPC
High Yield Carbon Steel	ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Tem Carbon Steel	ASTM / ASME A / SA 420 WPL6
Duplex and Super Duplex Steel	ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.
Alloy Steel	ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.
Nickel Alloy	ASTM / ASME SB 336 UNS N02200 (NICKEL 200), UNS N02201 (NICKEL 201), UNS N04400 (MONEL 400), UNS N08020 (ALLOY 20), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS N06601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276 )
Titanium	ASTM / ASME B/SB 363 Grade 2, Grade 5, Grade 7

HIGH PRESSURE FORGE FITTINGS

Products

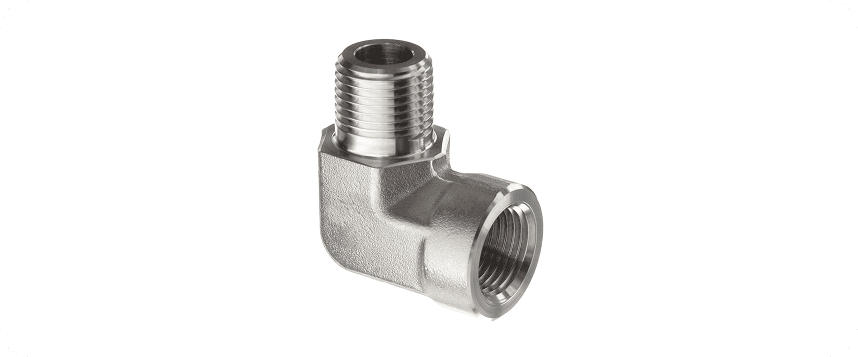

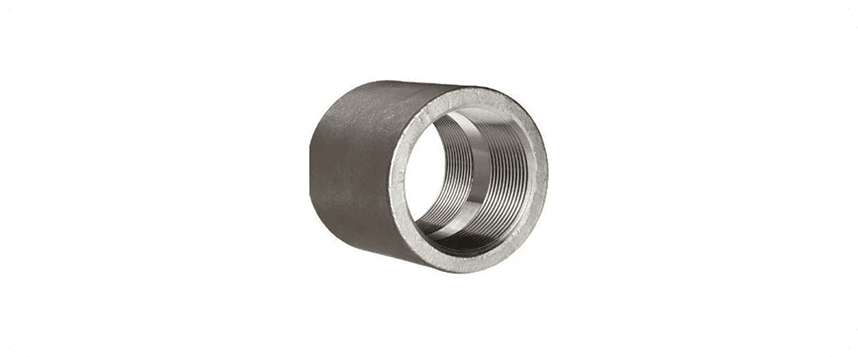

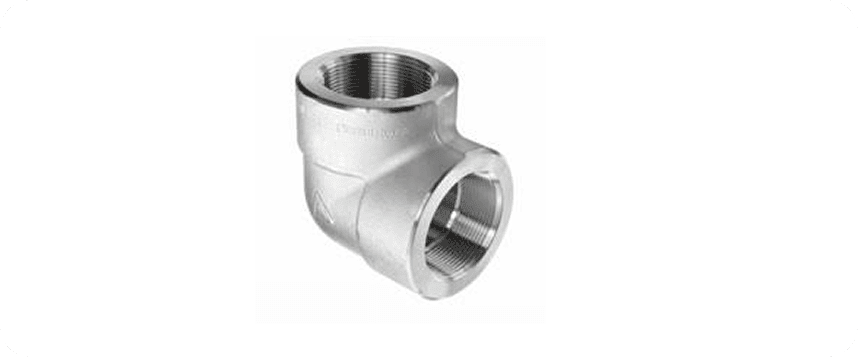

45 Degree and 90 Degree Elbows	Street Elbows	End Caps	Full and Half Couplings

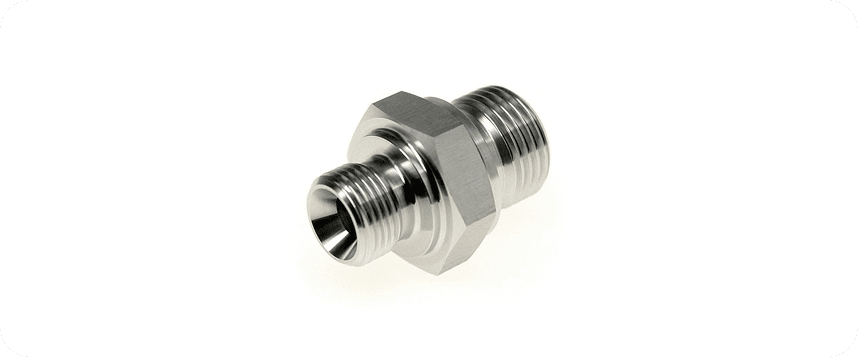

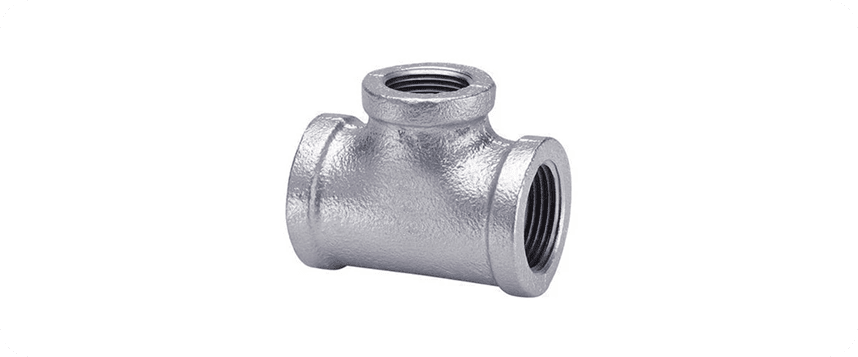

Tees and Crosses	Male to Male Elbows	Hex Nipples	Hex Bushings

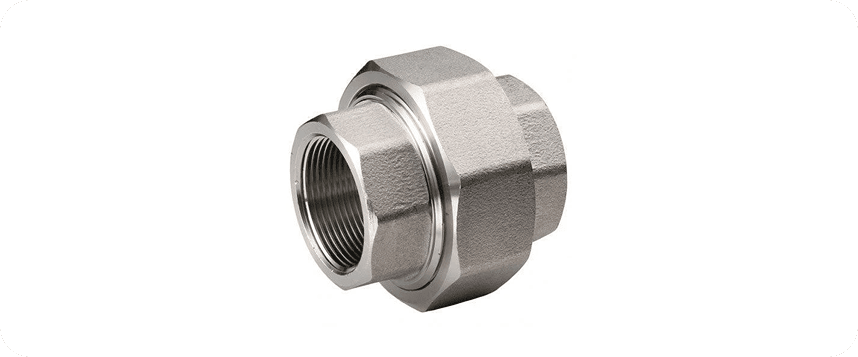

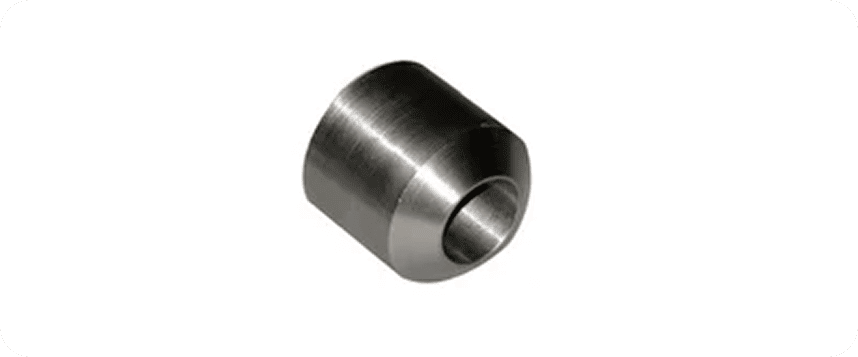

Unions	Reducing Inserts	Welding Bosses

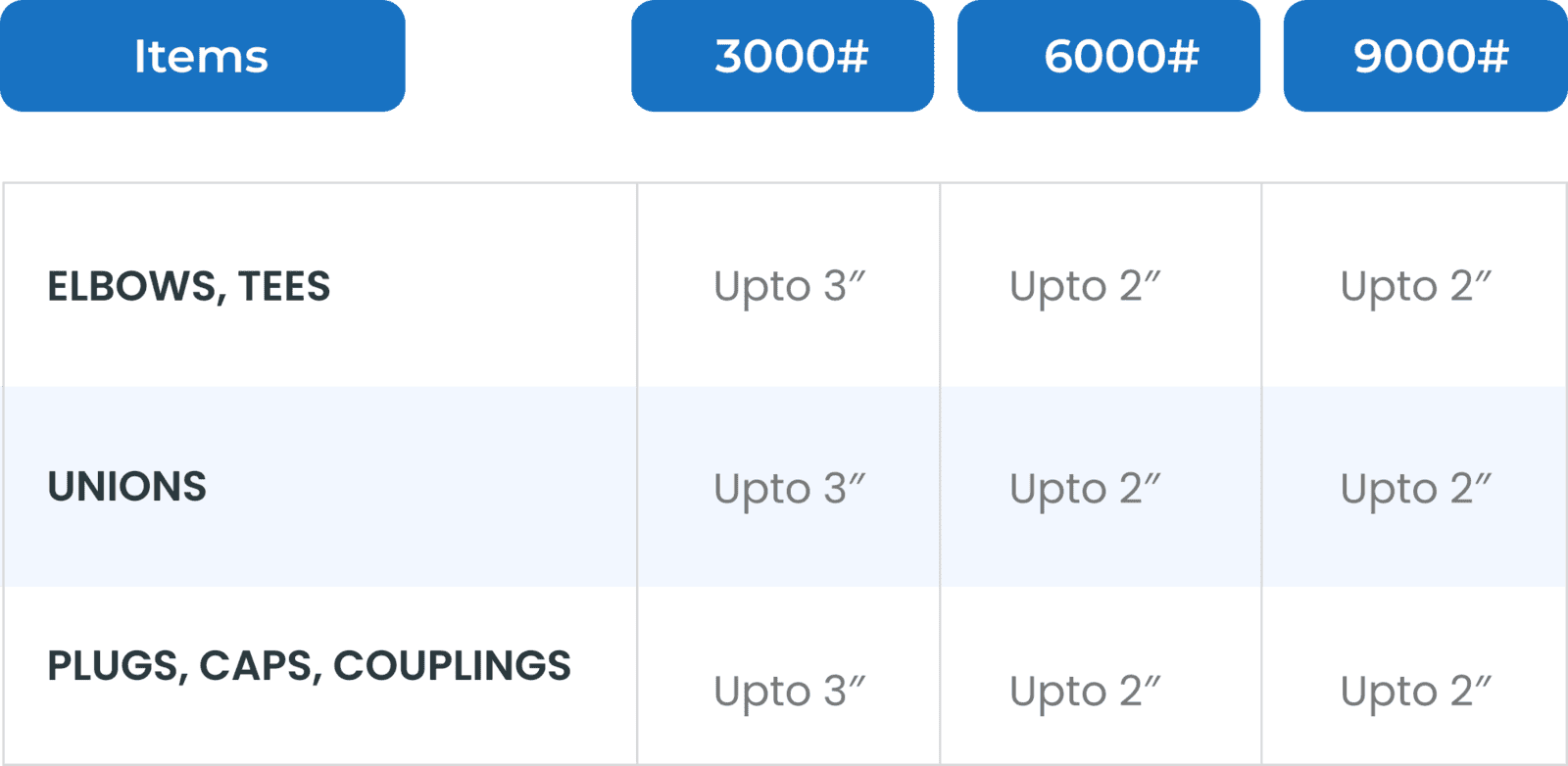

MANUFACTURING RANGE

ITEMS	3000#	6000#	9000#
ELBOWS, TEES	Upto 3″	Upto 2″	Upto 2″
UNIONS	Upto 3″	Upto 2″	Upto 2″
PLUGS, CAPS, COUPLINGS	Upto 3″	Upto 2″	Upto 2″

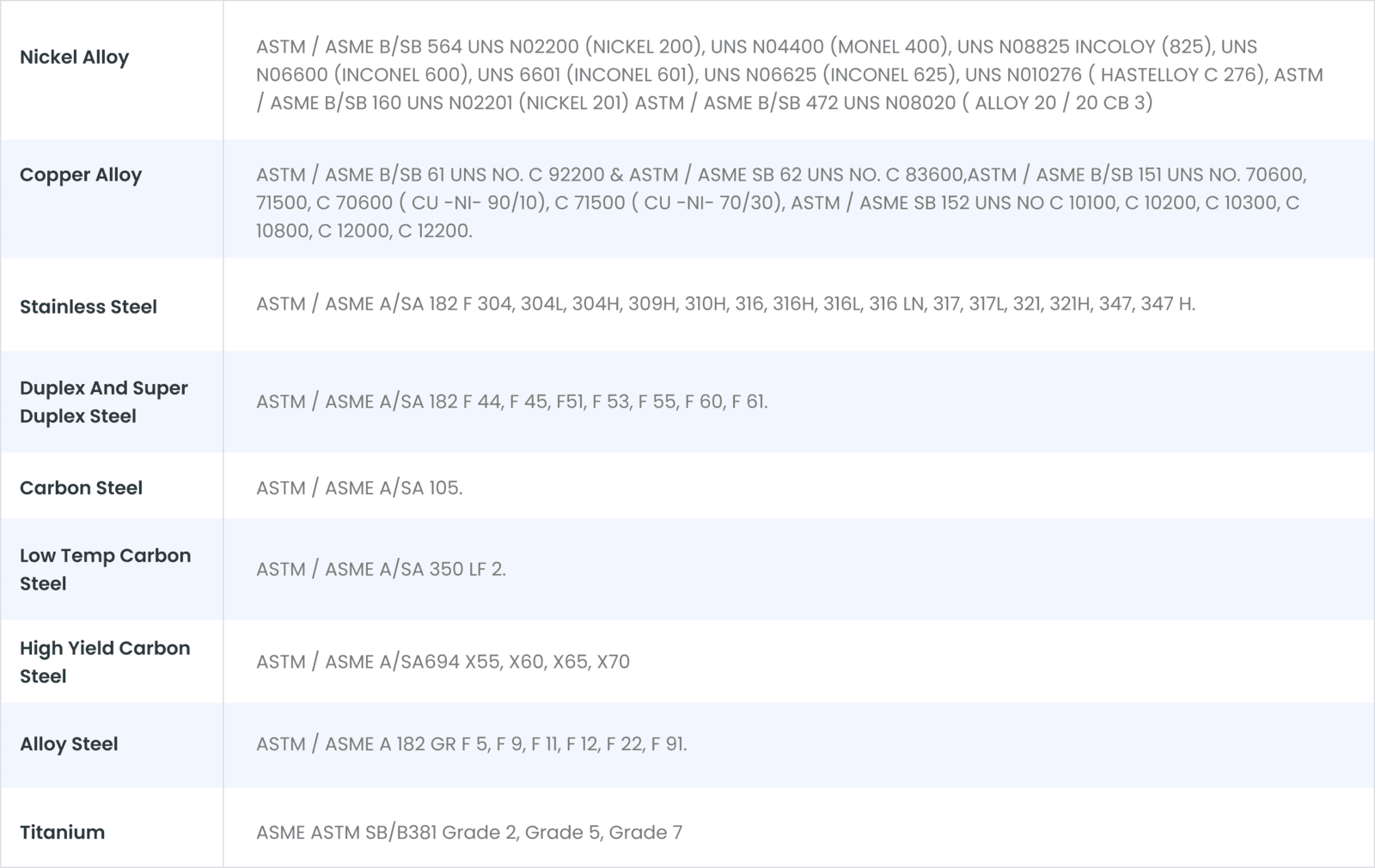

GRADES & SPECIFICATIONS

Nickel Alloy	ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY 20 / 20 CB 3)
Copper Alloy	ASTM / ASME B/SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600,ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.
Stainless Steel	ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex Steel	ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel	ASTM / ASME A/SA 105.
Low Temp Carbon Steel	ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel	ASTM / ASME A/SA694 X55, X60, X65, X70
Alloy Steel	ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Titanium	ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7

BRANCH FITTINGS

PRODUCT RANGE

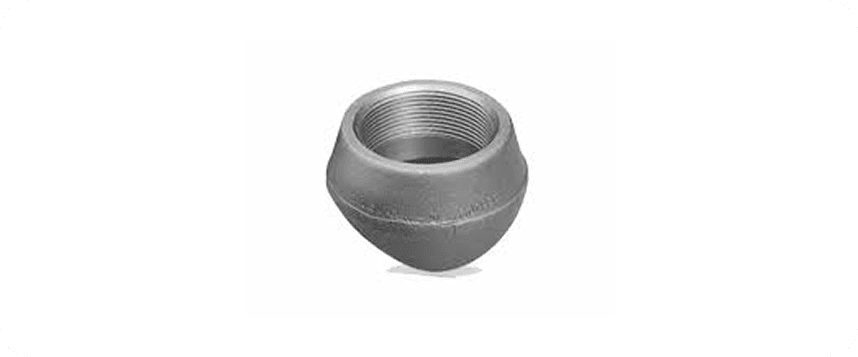

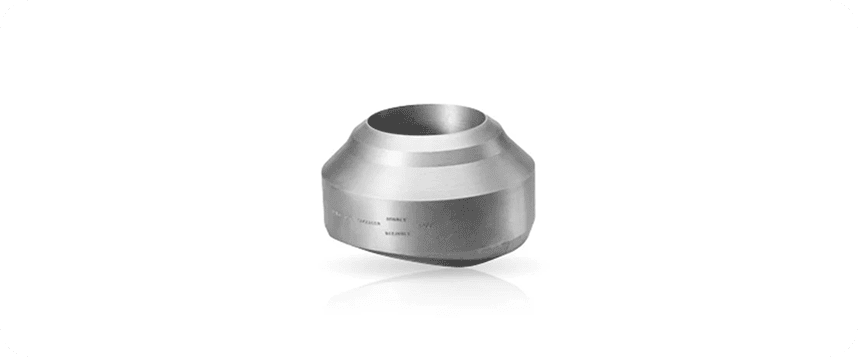

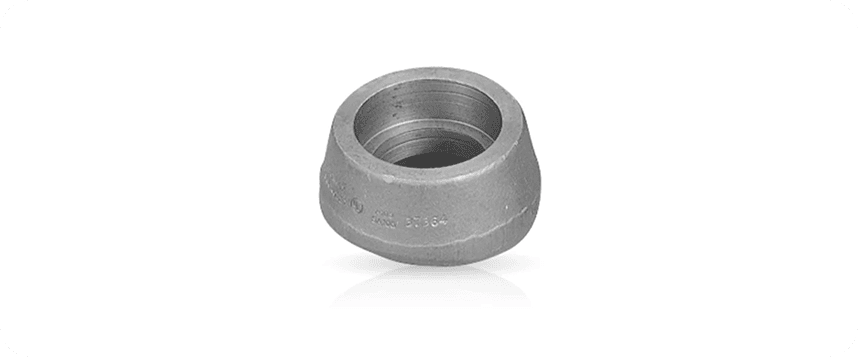

Welding Outlet	Thread Outlet	Socket Outlet	Lateral Outlet

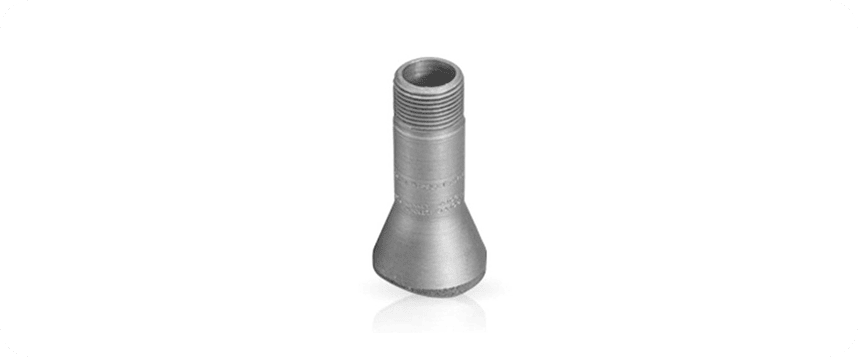

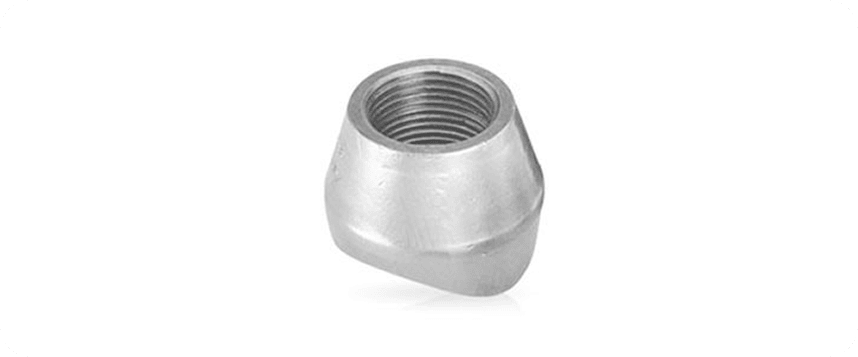

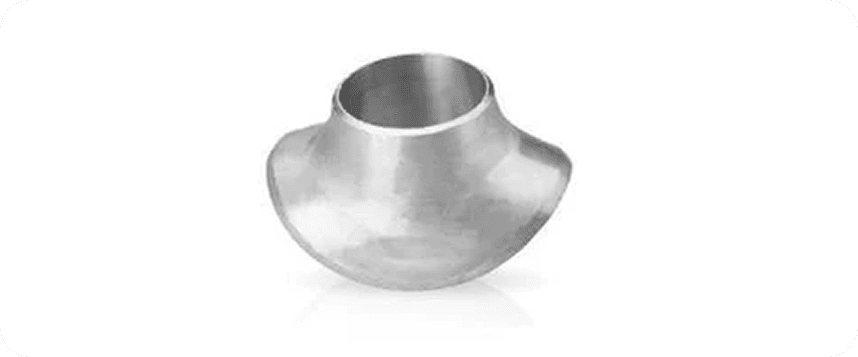

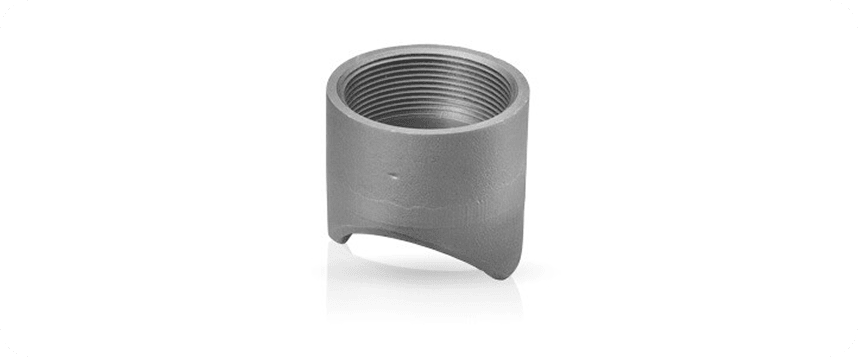

Sweep Outlet	Nipple Outlet	Braze Outlet	Couple Outlet

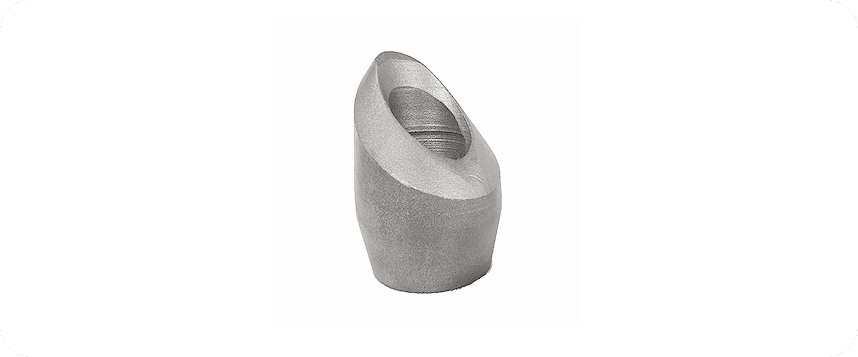

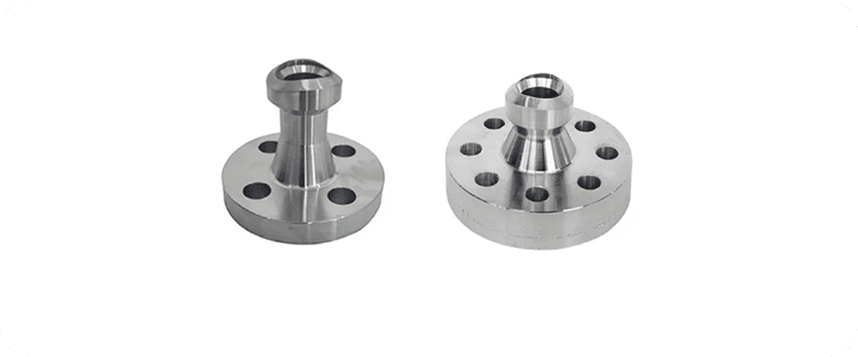

Flexible Outlet	Elbow Outlet	Flange Outlet

MANUFACTURING RANGE

We offer a wide variety of pipe outlets, encompassing Welding Outlets, Socket Outlets, Threading Outlets, Lateral Outlets, Elbow Outlets, Nipple Outlets, and Sweep Outlets. Additionally, we are capable of producing and delivering forged flanged outlet fittings with flange ratings ranging from Class 150 to Class 2500. Our Lateral and Elbow Outlets are available with butt-weld, socket-weld, and threaded end connections.

GRADES & SPECIFICATIONS

Nickel Alloy	ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY 20 / 20 CB 3)
Copper Alloy	ASTM / ASME B/SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600,ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.
Stainless Steel	ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex Steel	ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel	ASTM / ASME A/SA 105.
Low Temp Carbon Steel	ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel	ASTM / ASME A/SA694 X55, X60, X65, X70
Alloy Steel	ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Titanium	ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7

Compression Tube Fittings

PRODUCT RANGE

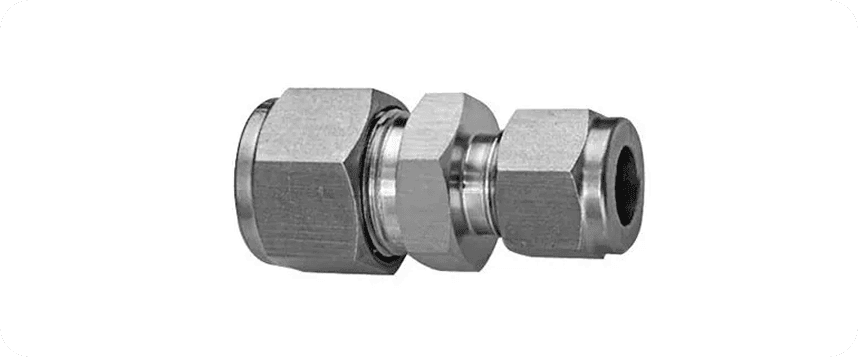

Straight Union (SU):	Reducing Union (RU):

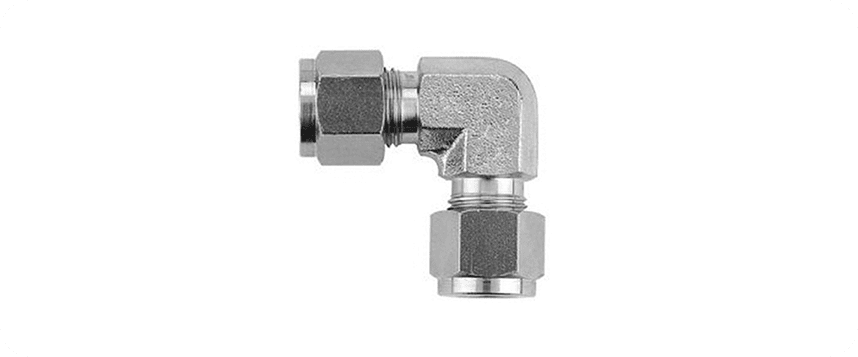

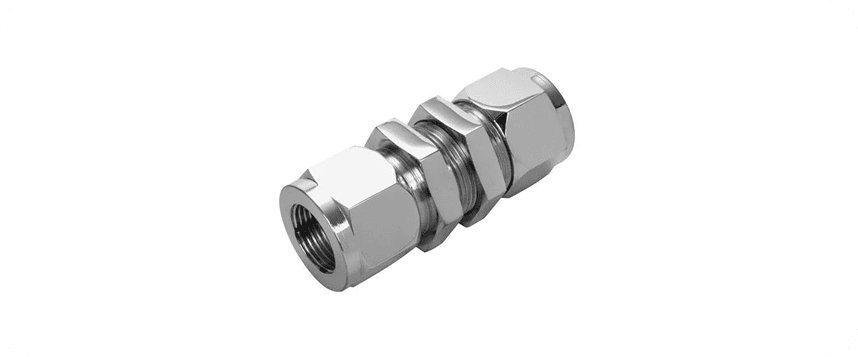

Bulkhead Union (BHU):	Union Elbow (UE):

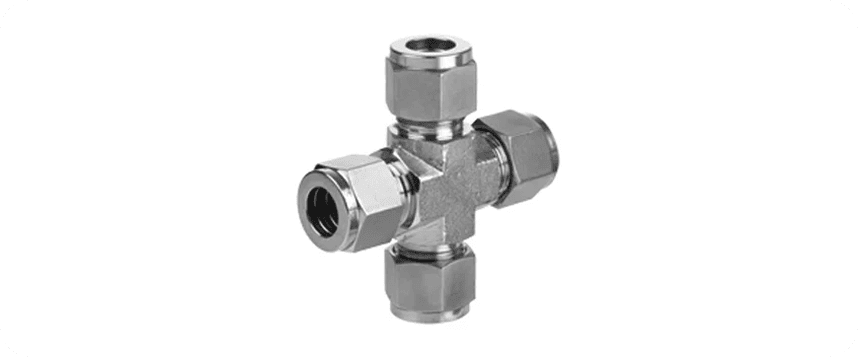

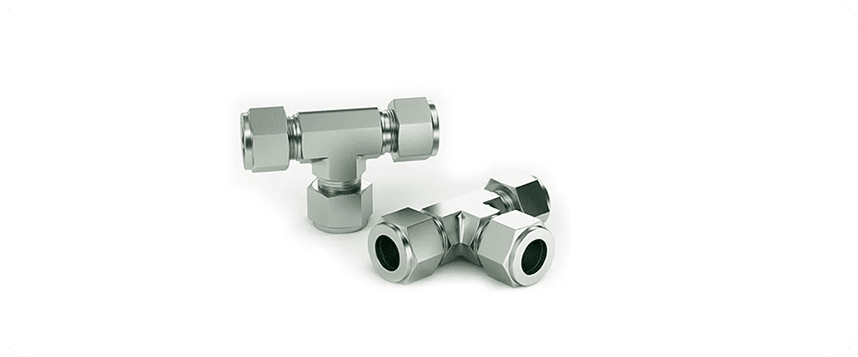

Union Tee (UT):	Union Cross (UX):

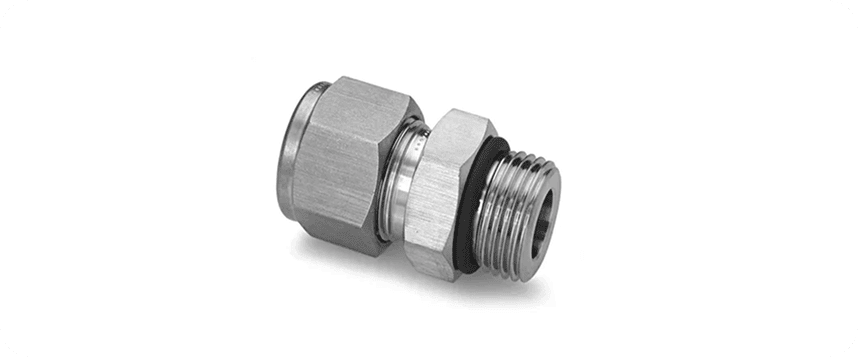

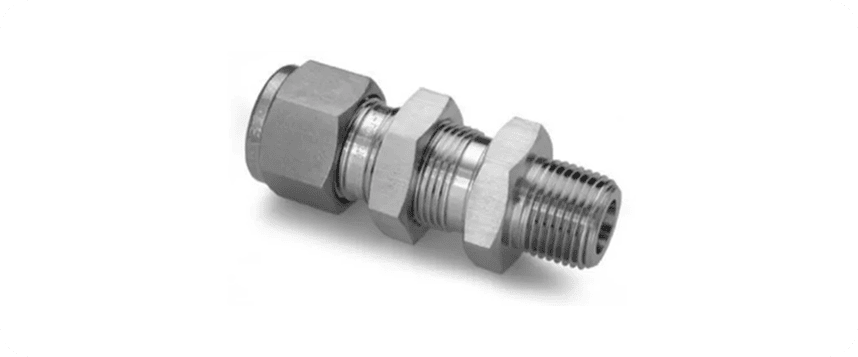

Male Connector (MC):	Male Bulkhead Connector (MBC):

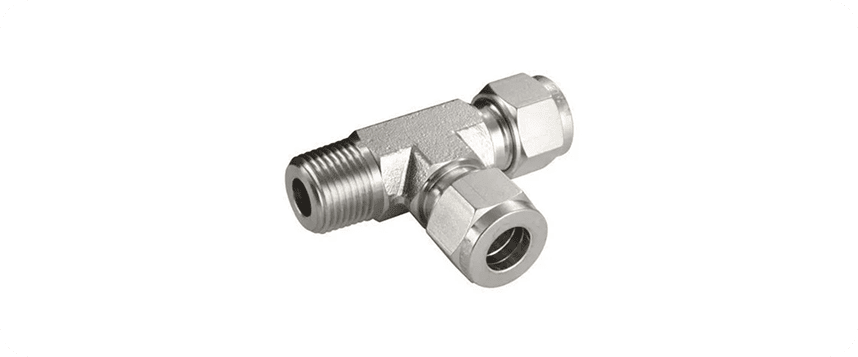

Male Elbow (ME):	Male Run Tee (MRT):

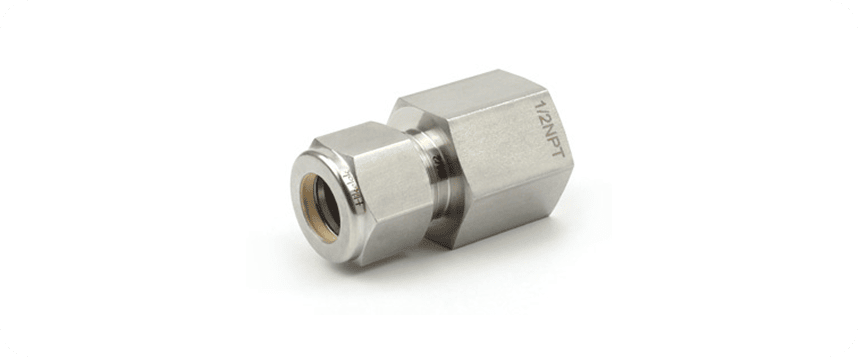

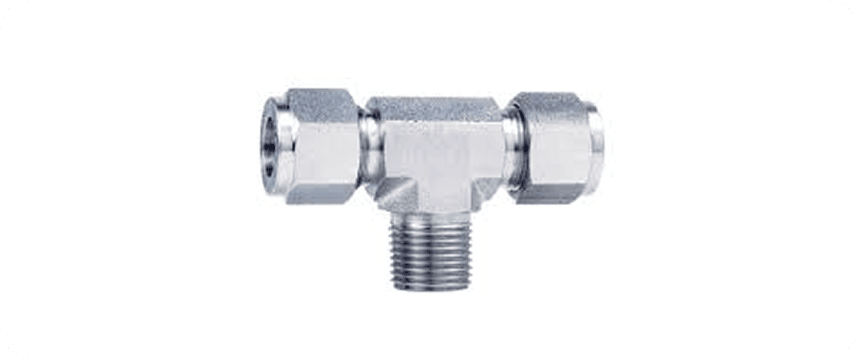

Male Branch Tee (MBT):	Female Connector (FC):

MANUFACTURING RANGE

Higron manufactures various products including tube fittings, needle and ball valves, and instrumentation accessories. These components are used in various industries including oil and gas production and CNG (Compressed Natural Gas) mother stations, chemical and biochemical plants, bio-pharmaceutical, research and development, semiconductor manufacturing, and more.

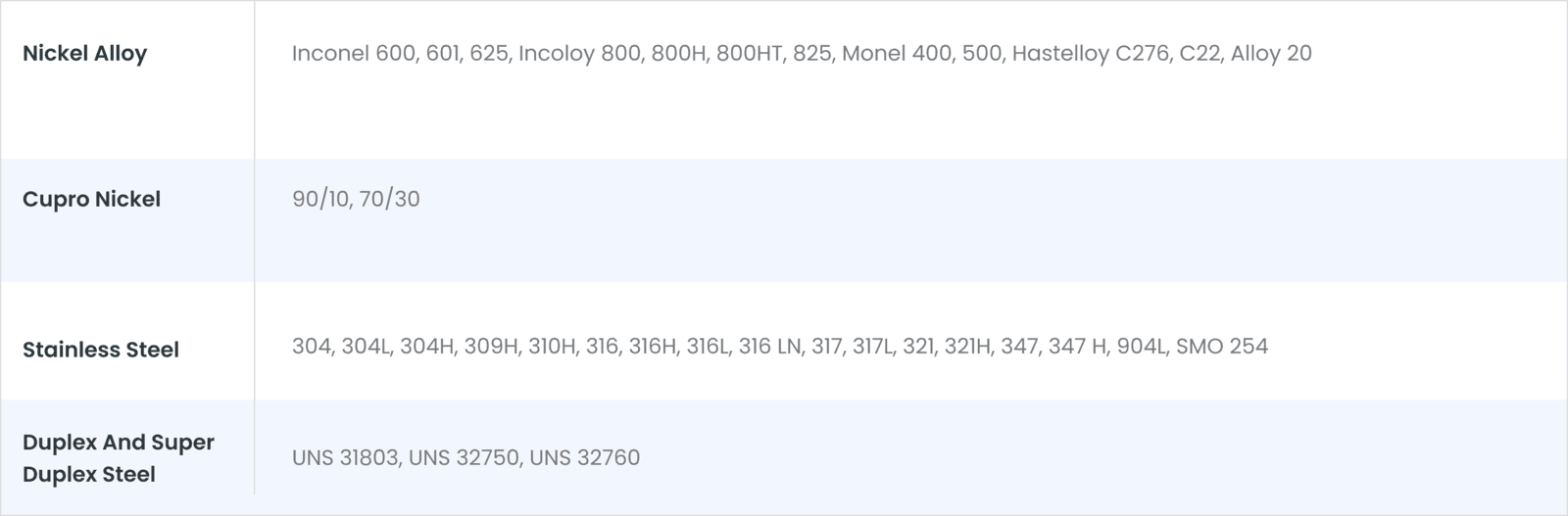

GRADES & SPECIFICATIONS

Nickel Alloy	Inconel 600, 601, 625, Incoloy 800, 800H, 800HT, 825, Monel 400, 500, Hastelloy C276, C22, Alloy 20
Cupro Nickel	90/10, 70/30
Stainless Steel	304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H, 904L, SMO 254
Duplex and Super Duplex Steel	UNS 31803, UNS 32750, UNS 32760

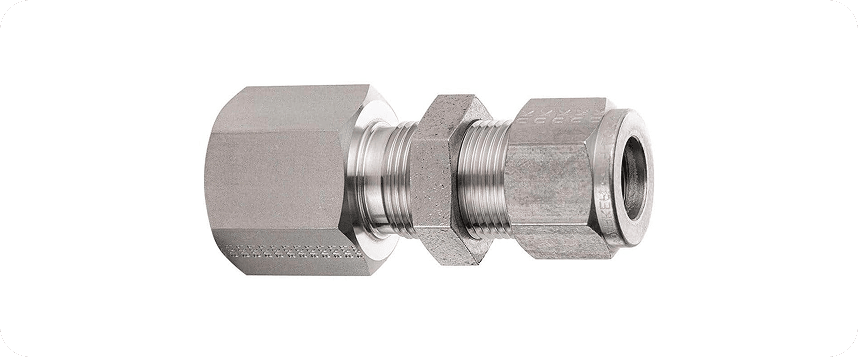

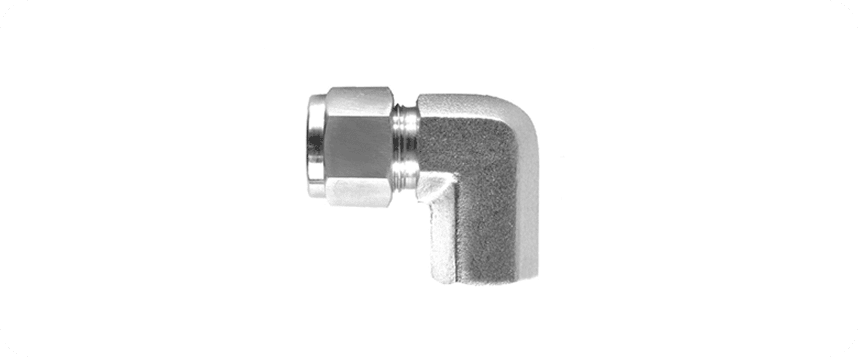

Female Bulkhead Connector (FBC):	Female Elbow (FE):

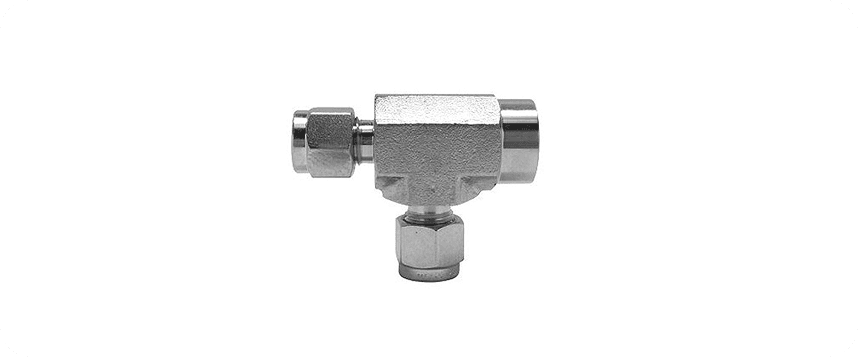

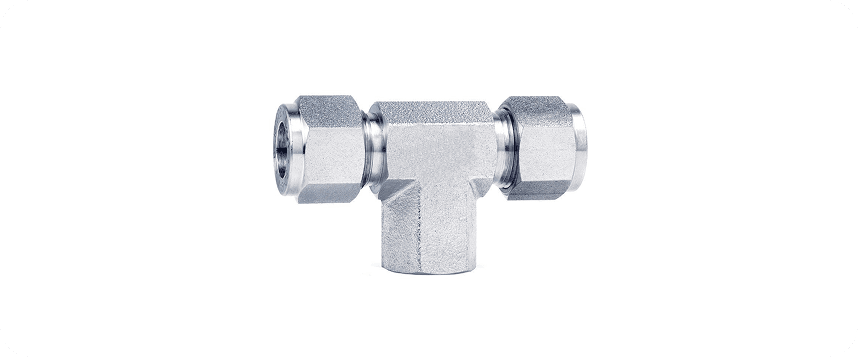

Female Run Tee (FRT):	Female Branch Tee (FBT):

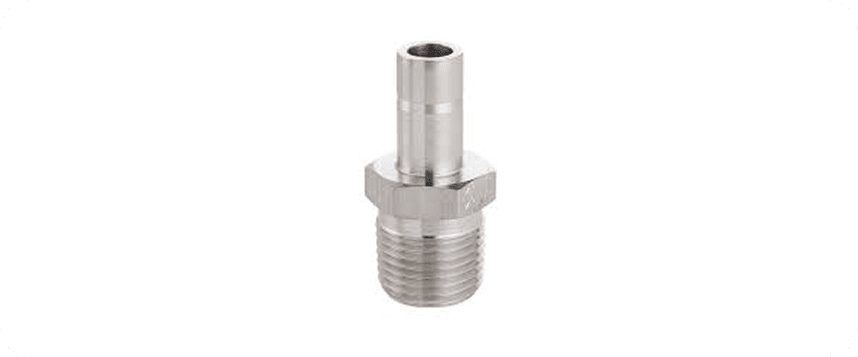

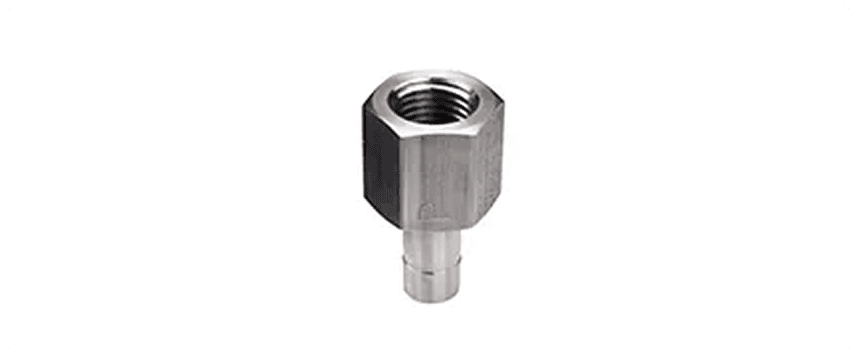

Male Adapter (MA):	Female Adapter (FA):

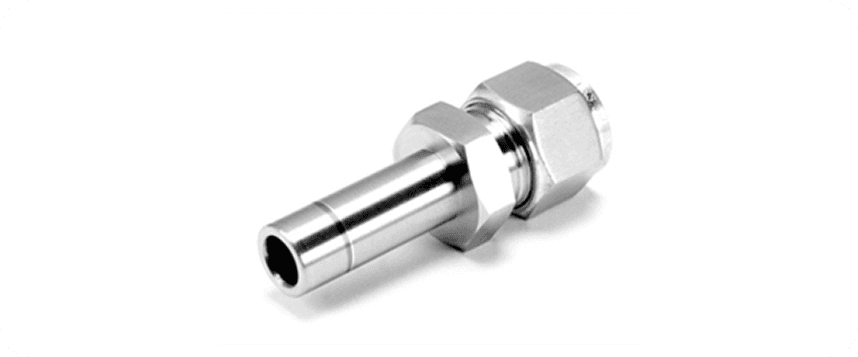

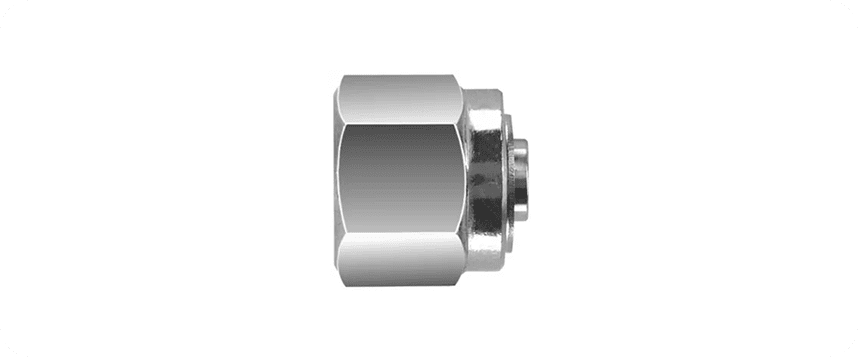

Tube End Reducer (TER):	Plug (PG):

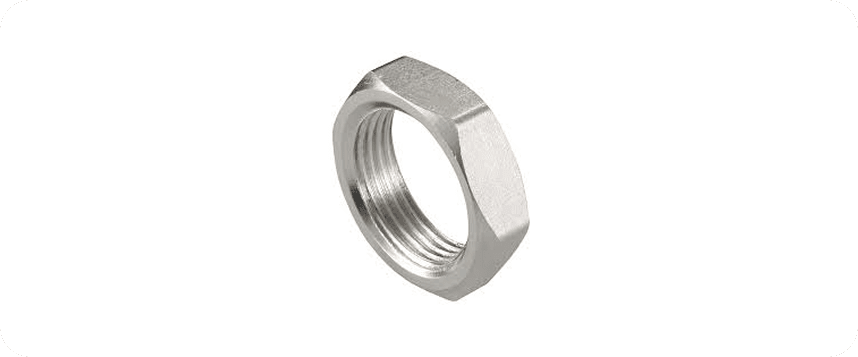

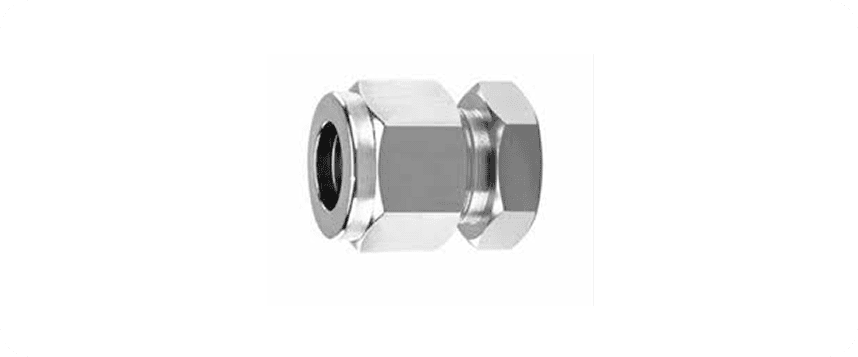

Cap (CP):	Bulkhead Lock Nut(BLN):

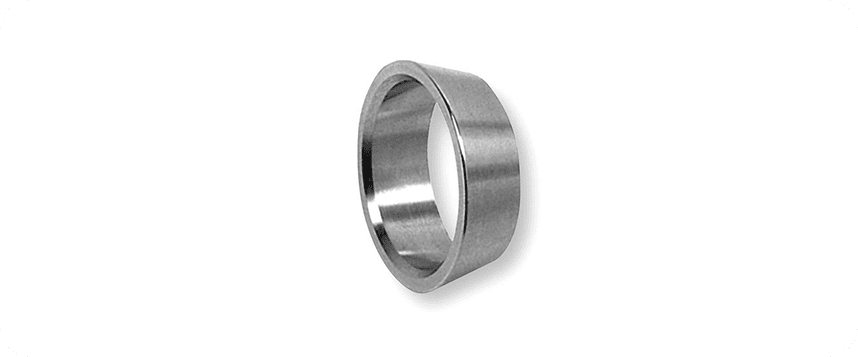

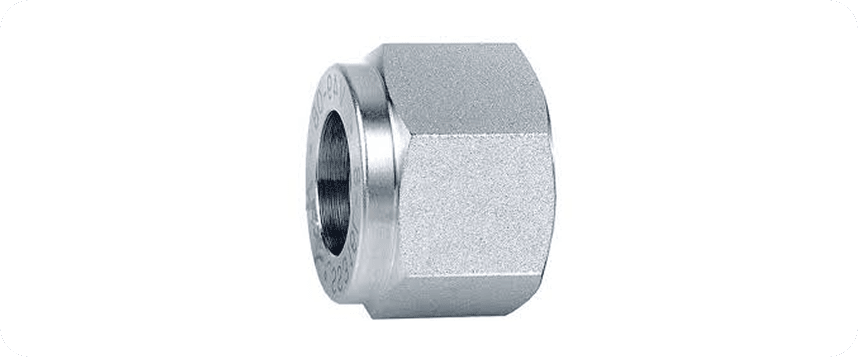

Tube Nut (TN):	Front Ferrule (FF):

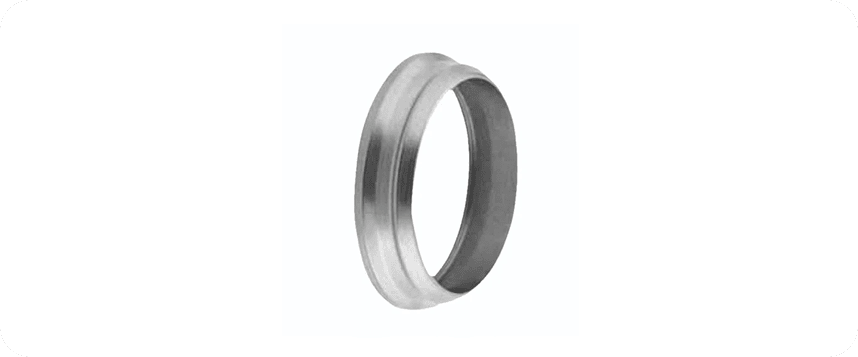

Back Ferrule (BF):

PIPE FITTINGS

FLANGES

PRODUCT RANGE

<img decoding="async" src="https://www.ritinoxoverseas.com/images/asme.jpg" alt="ANSI ASME Flanges" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/din1.jpg" alt="DIN Flanges" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/en1.jpg" alt="EN Flanges" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/other-forgings1.jpg" alt="Other Forgingss" width="206px" height="150px" />

ANSI – ASME Flanges

DIN Flanges

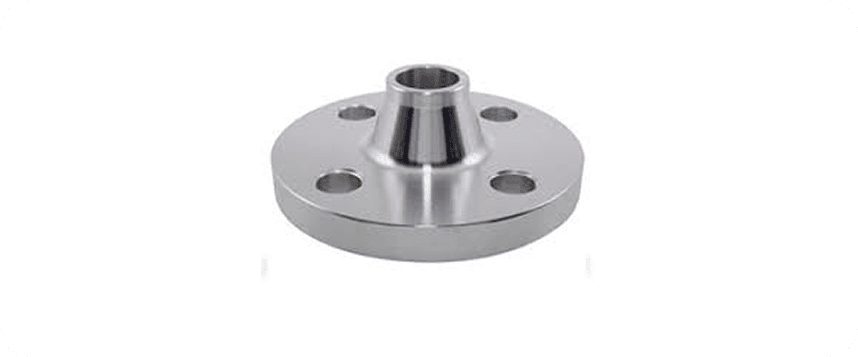

EN Flanges

Other Forgings

MANUFACTURING RANGE

GRADES & SPECIFICATIONS

BUTTWELD PIPE FITTINGS

PRODUCT RANGE

<img decoding="async" src="https://www.ritinoxoverseas.com/images/90-deg-elbow1.jpg" alt="90 Degree Elbows" width="250px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/45-deg-elbow.jpg" alt="45 Degree Elbows" width="250px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/180_dgree_elbow.jpg" alt="180 Degree Elbows" width="250px" height="150px" />

90 Degree Elbows

45 Degree Elbows

180 Degree Elbows

<img decoding="async" src="https://www.ritinoxoverseas.com/images/cross1.jpg" alt="Equal Tees &amp; Crosses" width="250px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/unequal-tee1.jpg" alt="Unequal Tees &amp; Crosses" width="250px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/cap1.jpg" alt="Buttweld Caps" width="250px" height="150px" />

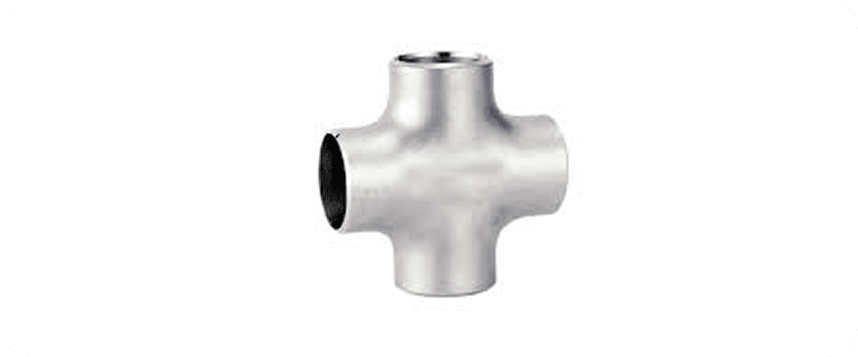

Equal Tees & Crosses

Unequal Tees & Crosses

Buttweld Caps

<img decoding="async" src="https://www.ritinoxoverseas.com/images/ecc-reducer1.jpg" alt="Concentric &amp; Eccentric Reduers" width="250px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/Swage-Nipples.jpg" alt="Swage Nipples" width="250px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/stubend3.jpg" alt="Stub Ends" width="250px" height="150px" />

Concentric & Eccentric Reduers

Swage Nipples

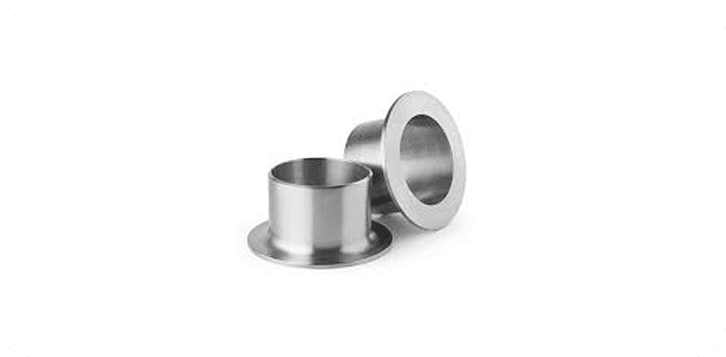

Stub Ends

MANUFACTURING RANGE

GRADES & SPECIFICATIONS

HIGH PRESSURE FORGE FITTINGS

Products

<img decoding="async" src="https://www.ritinoxoverseas.com/images/elbow4.jpg" alt="45 Degree and 90 Degree Elbows" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/street-elbow1.jpg" alt="Street Elbows" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/forge_cap.jpg" alt="End Caps" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/coupling1.jpg" alt="Full and Half Couplings" width="206px" height="150px" />

45 Degree and 90 Degree Elbows

Street Elbows

End Caps

Full and Half Couplings

<img decoding="async" src="https://www.ritinoxoverseas.com/images/tee1.jpg" alt="Tees and Crosses" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/male-elbow1.jpg" alt="Male to Male Elbows" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/hex-nipple1.jpg" alt="Hex Nipples" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/hex-bushing1.jpg" alt="Hex Bushings" width="206px" height="150px" />

Tees and Crosses

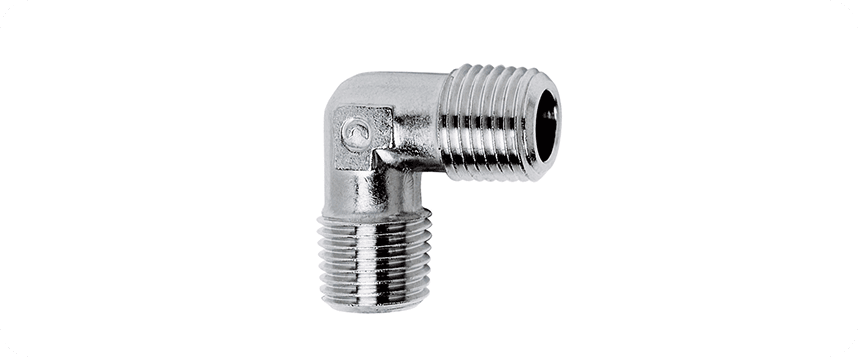

Male to Male Elbows

Hex Nipples

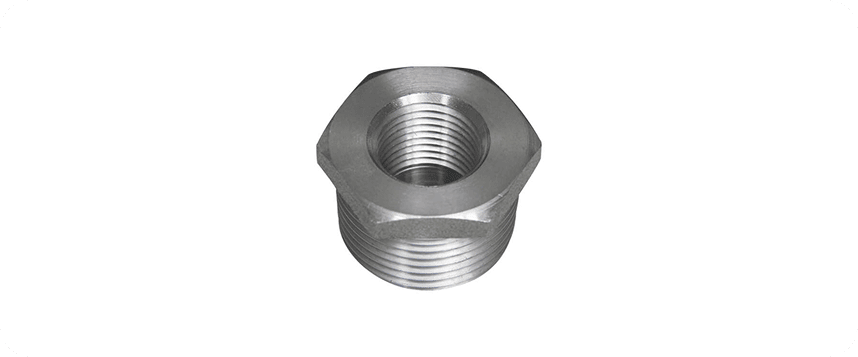

Hex Bushings

<img decoding="async" src="https://www.ritinoxoverseas.com/images/union1.jpg" alt="Unions" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/reducing-insert1.jpg" alt="Reducing Inserts" width="206px" height="150px" />

<img decoding="async" class="alignnone" src="https://www.ritinoxoverseas.com/images/welding-boss1.jpg" alt="Welding Bosses" width="200" height="100" />

Unions

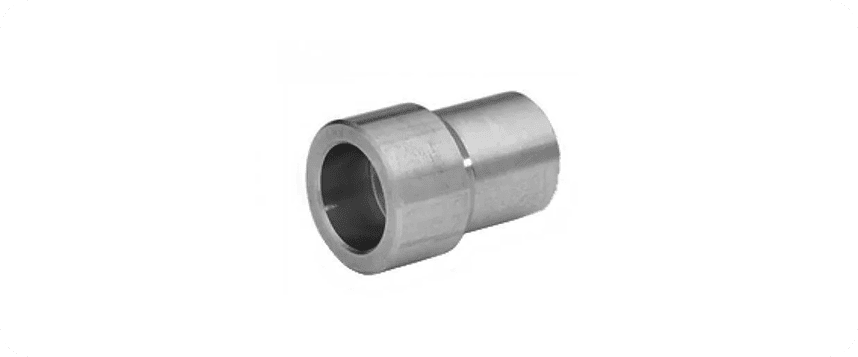

Reducing Inserts

Welding Bosses

MANUFACTURING RANGE

GRADES & SPECIFICATIONS

BRANCH FITTINGS

PRODUCT RANGE

Welding Outlet

Thread Outlet

Socket Outlet

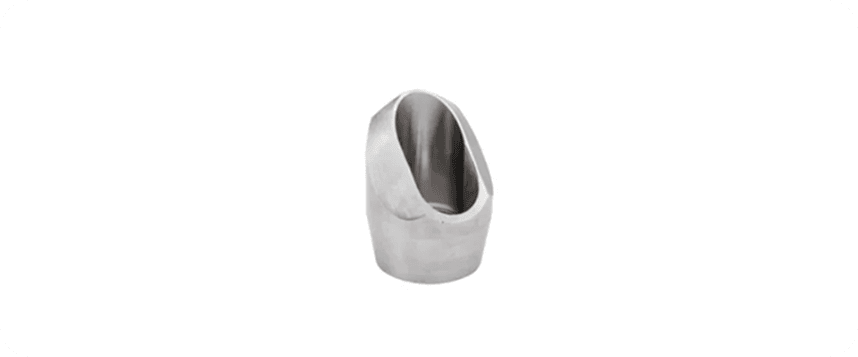

Lateral Outlet

<img decoding="async" src="https://www.ritinoxoverseas.com/images/sweeploet1.jpg" alt="Sweep Outlets" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/nipolet2.jpg" alt="Nipolets" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/brazolet2.jpg" alt="Brazolets" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/coupolet2.jpg" alt="Coupolets" width="206px" height="150px" />

Sweep Outlet

Nipple Outlet

Braze Outlet

Couple Outlet

<img decoding="async" src="https://www.ritinoxoverseas.com/images/flexolet1.jpg" alt="Flexolets" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/elbolet2.jpg" alt="Elbolet" width="206px" height="150px" />

<img decoding="async" src="https://www.ritinoxoverseas.com/images/flangeolet.jpg" alt="Flangeolet" width="206px" height="150px" />

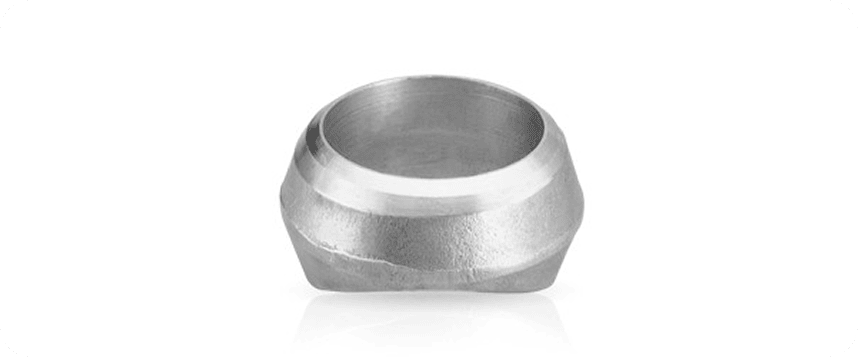

Flexible Outlet
